sqlDashboards Example Charts Pastel Theme

For each of the chart types their data format expected together with some examples are shown below


Time Series

Format

  1. The first date/time column found will be used for the x-axis.
  2. Each numerical column represents one time series line on the chart.

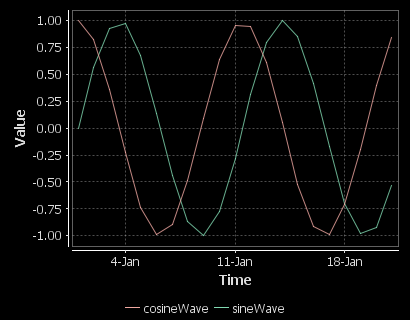

Day Sines

A sine/cosine wave over a period of days.

A sine/cosine wave over a period of days. A sine/cosine wave over a period of days.

KDB Code

Area Chart

Format

  1. The first string columns are used as category labels.
  2. Whatever numeric columns appear after the strings represents a separate series in the chart.

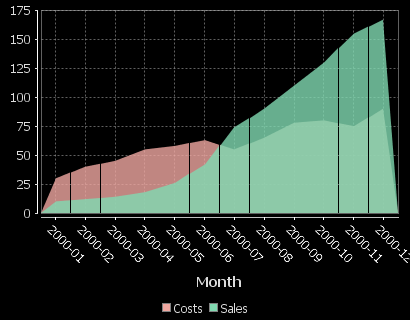

Multiple Series with Time X-Axis

2 series are shown, one for Sales, One for Costs. x-axis is in months.

2 series are shown, one for Sales, One for Costs. x-axis is in months. 2 series are shown, one for Sales, One for Costs. x-axis is in months.

KDB Code

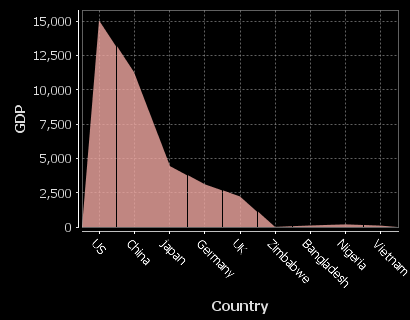

Single Category

One number column generates one series.

One number column generates one series. One number column generates one series.

KDB Code

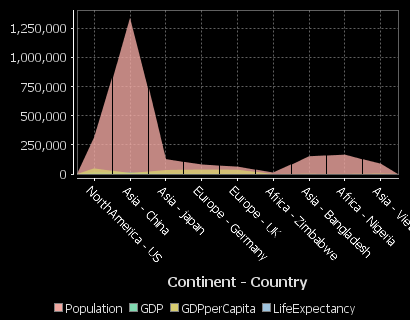

Multiple series

Each column is a new series/colored bar.

Each column is a new series/colored bar. Each column is a new series/colored bar.

KDB Code

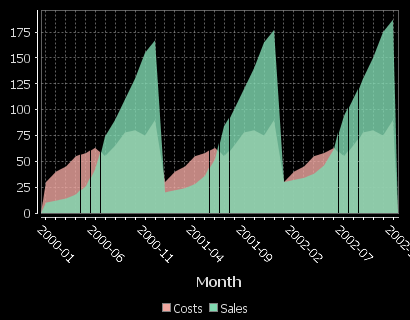

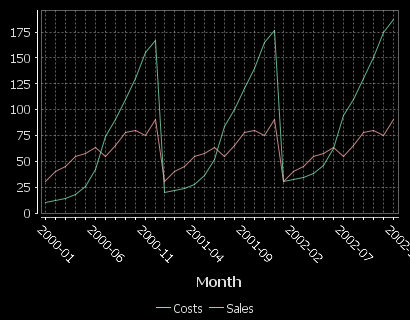

Multiple series with many categories on the X-axis

Each column is a new series/colored bar. When there are a lot of categories, some labels are hidden.

Each column is a new series/colored bar. When there are a lot of categories, some labels are hidden. Each column is a new series/colored bar. When there are a lot of categories, some labels are hidden.

KDB Code

Bar Chart

Format

  1. The first string columns are used as category labels.
  2. Whatever numeric columns appear after the strings represents a separate series in the chart.

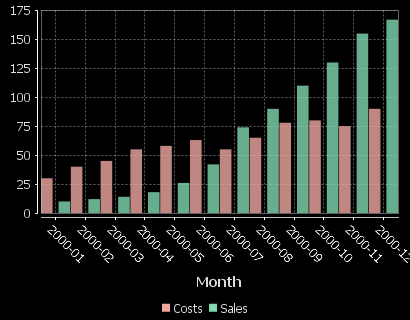

Multiple Series with Time X-Axis

2 series are shown, one for Sales, One for Costs. x-axis is in months.

2 series are shown, one for Sales, One for Costs. x-axis is in months. 2 series are shown, one for Sales, One for Costs. x-axis is in months.

KDB Code

Single Category

One number column generates one series.

One number column generates one series. One number column generates one series.

KDB Code

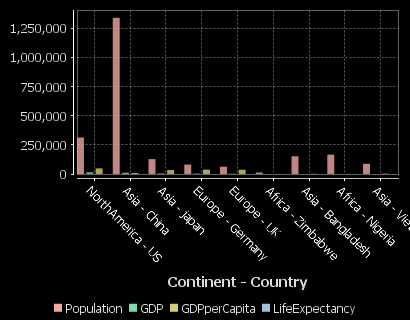

Multiple series

Each column is a new series/colored bar.

Each column is a new series/colored bar. Each column is a new series/colored bar.

KDB Code

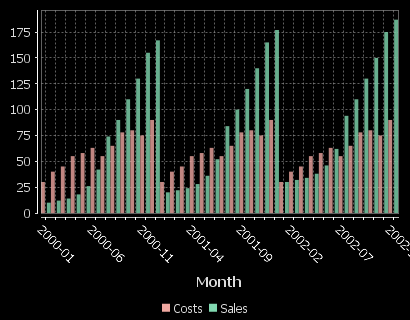

Multiple series with many categories on the X-axis

Each column is a new series/colored bar. When there are a lot of categories, some labels are hidden.

Each column is a new series/colored bar. When there are a lot of categories, some labels are hidden. Each column is a new series/colored bar. When there are a lot of categories, some labels are hidden.

KDB Code

Bar Chart Stacked

Format

  1. The first string columns are used as category labels.
  2. Whatever numeric columns appear after the strings represents a separate series in the chart.

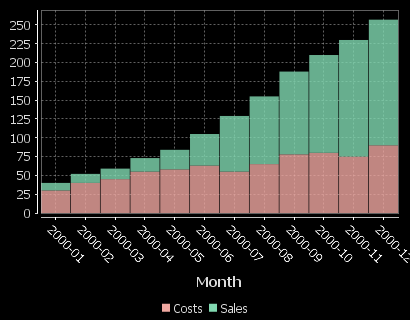

Multiple Series with Time X-Axis

2 series are shown, one for Sales, One for Costs. x-axis is in months.

2 series are shown, one for Sales, One for Costs. x-axis is in months. 2 series are shown, one for Sales, One for Costs. x-axis is in months.

KDB Code

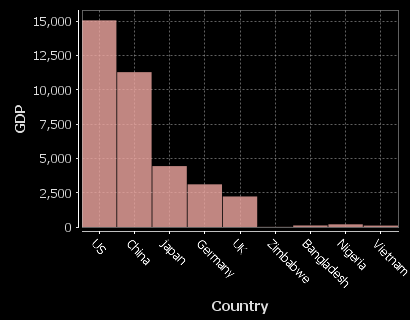

Single Category

One number column generates one series.

One number column generates one series. One number column generates one series.

KDB Code

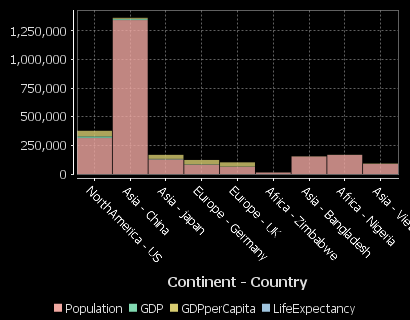

Multiple series

Each column is a new series/colored bar.

Each column is a new series/colored bar. Each column is a new series/colored bar.

KDB Code

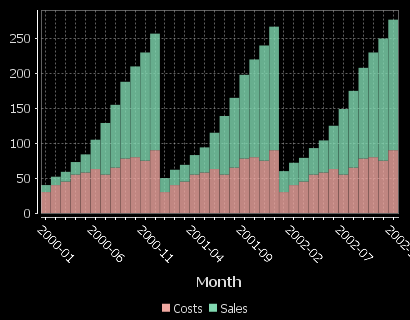

Multiple series with many categories on the X-axis

Each column is a new series/colored bar. When there are a lot of categories, some labels are hidden.

Each column is a new series/colored bar. When there are a lot of categories, some labels are hidden. Each column is a new series/colored bar. When there are a lot of categories, some labels are hidden.

KDB Code

Bubble Chart

Format

  1. The first string columns are used as category labels.
  2. There must then be 3 numeric columns which are used for x-coord, y-coord, size in that order.

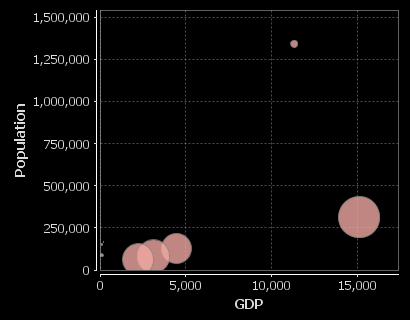

Single series

The three columns are used for x-axis,y-axis and size respectively. Notice the GdpPerCapita column has been divided to make it similar sized to the othercolumns so that the bubbles are a sensible size.

The three columns are used for x-axis,y-axis and size respectively. Notice the GdpPerCapita column has been divided to make it similar sized to the othercolumns so that the bubbles are a sensible size. The three columns are used for x-axis,y-axis and size respectively. Notice the GdpPerCapita column has been divided to make it similar sized to the othercolumns so that the bubbles are a sensible size.

KDB Code

Candlestick

Format

  1. The table should contain columns labelled open/high/low/close/volume

  2. but must atleast contain high/low to allow it to be drawn.

  3. Only weekday values are shown.

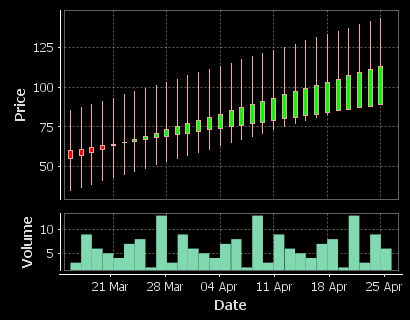

Prices going up

A Candlestick showing price movements and fluctuating volume over a period of 6 weeks

A Candlestick showing price movements and fluctuating volume over a period of 6 weeks A Candlestick showing price movements and fluctuating volume over a period of 6 weeks

KDB Code

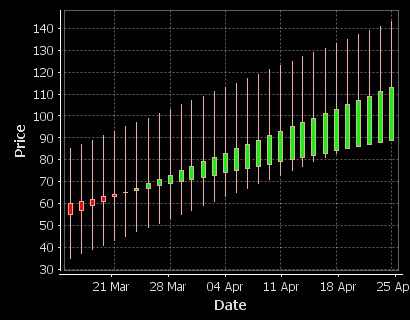

Rising Prices, No Volume

A candlestick showing only price movements, no volume column.

A candlestick showing only price movements, no volume column. A candlestick showing only price movements, no volume column.

KDB Code

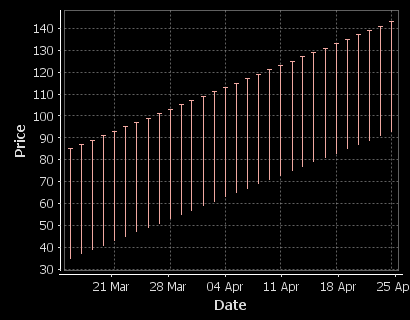

Rising Prices, Only High Low Columns Shown

A candlestick showing only high low prices.

A candlestick showing only high low prices. A candlestick showing only high low prices.

KDB Code

Data Table

Format

Any format of table is acceptable, all rows/columns will be shown as a plain table.

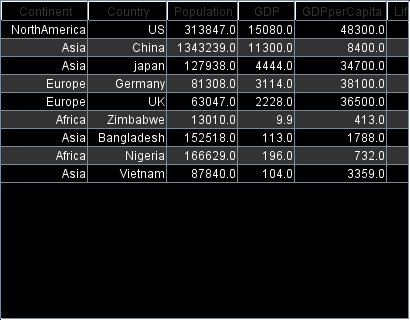

Many Columned Table

All rows/columns will be shown as a plain table.

All rows/columns will be shown as a plain table.

KDB Code

Heat Map

Format

A HeatMap works best with 1+ string columns.

  1. Starting from the left each string column is taken as one nesting level
  2. The first numerical column will be taken as size, the second as colour.

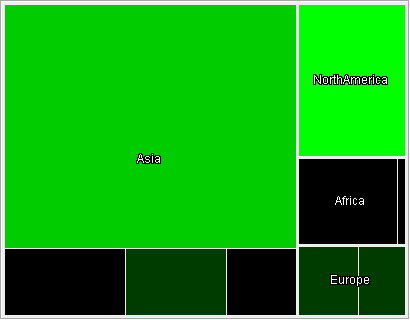

Country GDP's

The continent column is a top-level branch, the country column becomes leafs.The first two columns are GDP and GDP per Capita which become the size and color of the leafs respectively.

The continent column is a top-level branch, the country column becomes leafs.The first two columns are GDP and GDP per Capita which become the size and color of the leafs respectively. The continent column is a top-level branch, the country column becomes leafs.The first two columns are GDP and GDP per Capita which become the size and color of the leafs respectively.

KDB Code

Histogram

Format

Each Numeric column represents a separate series in the histogram. The series values are placed into buckets and their frquency tallied.

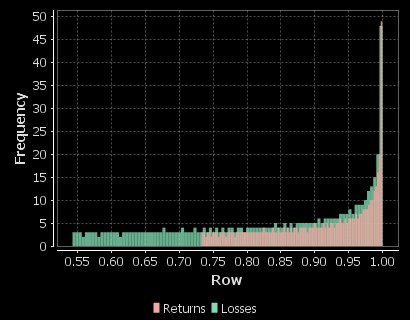

Profit Distribution

Distribution of Returns and Losses

Distribution of Returns and Losses Distribution of Returns and Losses

KDB Code

Line Chart

Format

  1. The first string columns are used as category labels.
  2. Whatever numeric columns appear after the strings represents a separate series in the chart.

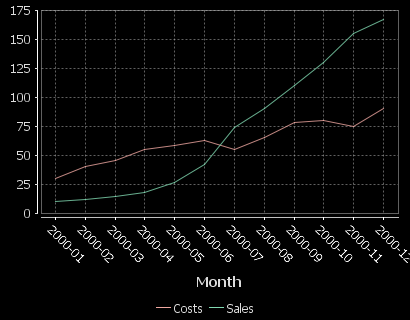

Multiple Series with Time X-Axis

2 series are shown, one for Sales, One for Costs. x-axis is in months.

2 series are shown, one for Sales, One for Costs. x-axis is in months. 2 series are shown, one for Sales, One for Costs. x-axis is in months.

KDB Code

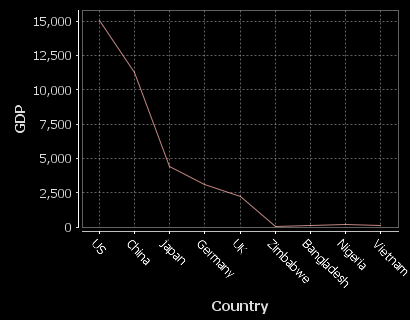

Single Category

One number column generates one series.

One number column generates one series. One number column generates one series.

KDB Code

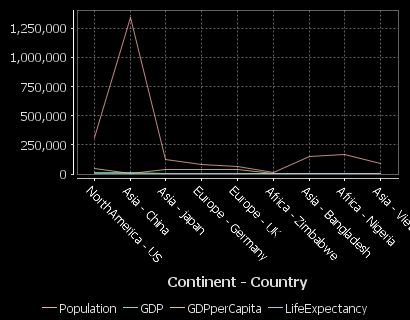

Multiple series

Each column is a new series/colored bar.

Each column is a new series/colored bar. Each column is a new series/colored bar.

KDB Code

Multiple series with many categories on the X-axis

Each column is a new series/colored bar. When there are a lot of categories, some labels are hidden.

Each column is a new series/colored bar. When there are a lot of categories, some labels are hidden. Each column is a new series/colored bar. When there are a lot of categories, some labels are hidden.

KDB Code

Pie Chart

Format

  1. Each numerical column represents a pie chart.
  2. The title of each pie chart will be the column title.
  3. Each row will be a section of the pie and will use the row title as a label.

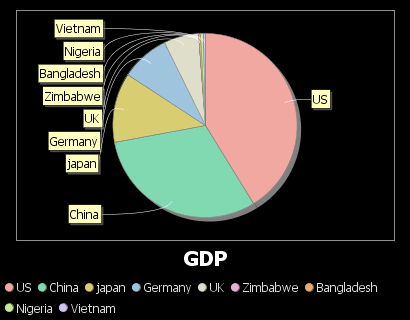

Single Pie Chart Example

A single numerical columns gives a single pie chart for that column.

A single numerical columns gives a single pie chart for that column. A single numerical columns gives a single pie chart for that column.

KDB Code

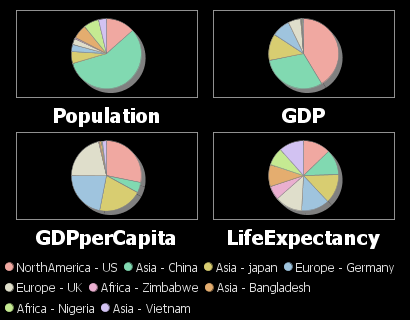

Multiple Pie Chart Example

Using multiple numerical columns gives a pie chart for each column.

Using multiple numerical columns gives a pie chart for each column. Using multiple numerical columns gives a pie chart for each column.

KDB Code

Scatter Plot

Format

  1. Two or more numeric columns are required.
  3. The values in the first column are used for the X-axis.
  5. The values in following columns are used for the Y-axis.
  7. Each column is displayed with a separate color.

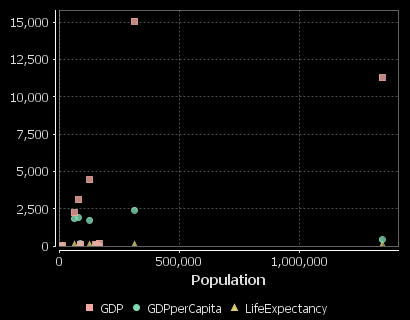

Country Population and GDP

The first column GDP is used for the x-axis. The subsequent columns are then plotted against that x axis as separate colored series.

The first column GDP is used for the x-axis. The subsequent columns are then plotted against that x axis as separate colored series. The first column GDP is used for the x-axis. The subsequent columns are then plotted against that x axis as separate colored series.

KDB Code

Step Plot

Format

  1. The first date/time column found will be used for the x-axis.
  2. Each numerical column represents one time series line on the chart.

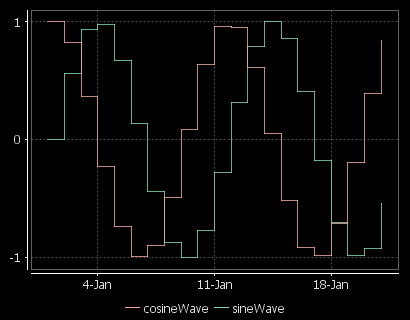

Day Sines

A sine/cosine wave over a period of days.

A sine/cosine wave over a period of days. A sine/cosine wave over a period of days.

KDB Code

DOT Graph

Format

  1. The table can contain columns labelled from/to/label/style.
  2. If it does not, the first two columns are assumed to be from and to respectively.
  3. The dot file generated gives a directed graph from "from" nodes to "to" nodes with applicable style/labels.
  4. Graphviz Dot MUST be on your command line PATH for this to work.

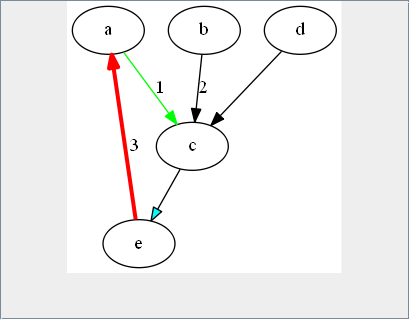

Alphabet Spaghetti

A directed graph with 5 nodes.

A directed graph with 5 nodes. A directed graph with 5 nodes.

KDB Code
